Product Description

Product Detail

A leading PTFE sheet (Teflon sheet) manufacturer and supplier provides high-quality industrial materials tailored for diverse applications.

It is divided into two types: molded plate and turning plate. The molded plate is made of polytetrafluoroethylene resin by molding at room temperature, then winding and cooling. The turning plate is made of polytetrafluoroethylene resin by pressing, Sintered and peeled. High temperature resistance, wear resistance, high pressure resistance, acid resistance and alkali resistance; it can effectively prevent deformation and aging. It can be used at -196℃~+260℃ under no load.

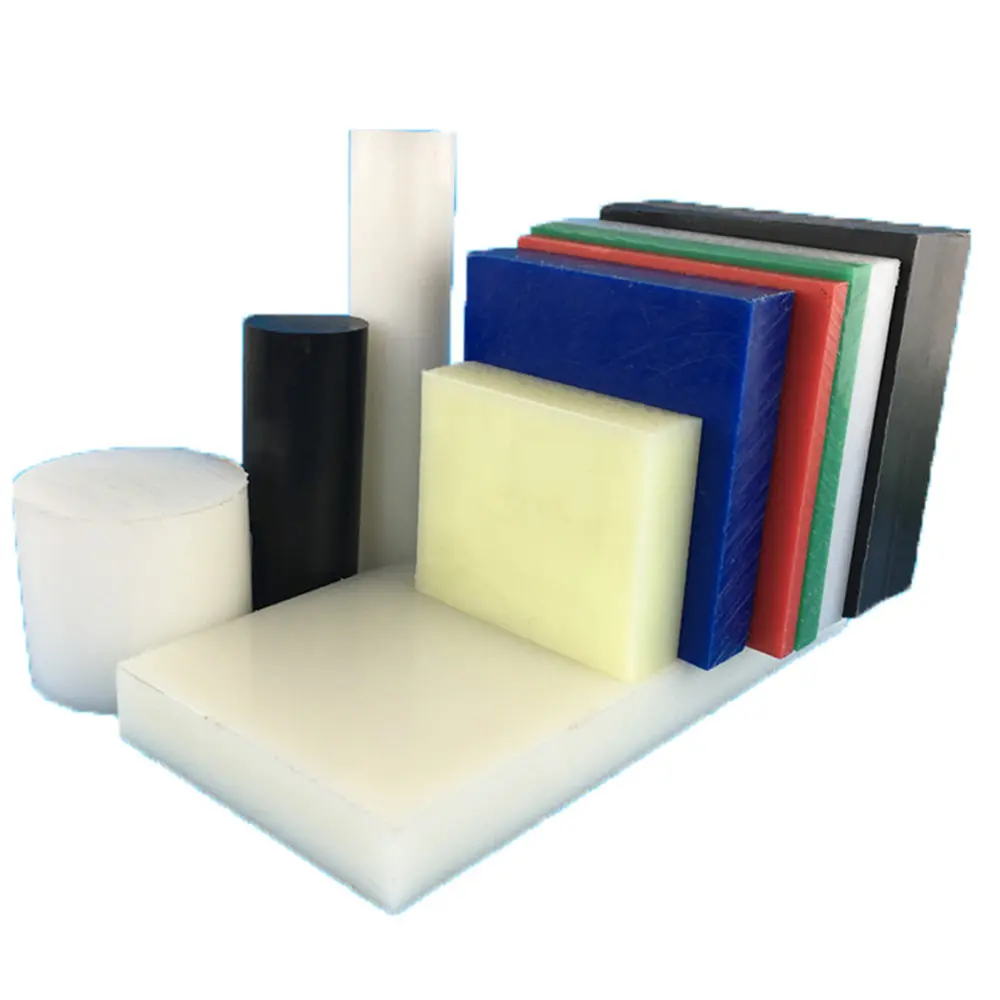

Blue-white-color-custom-HDPE-UHMWPE-Plastic

Product Feature

High lubrication, it's the lowest friction coefficient in solid material
Chemical corrosion resistance, insoluble in strong acid, strong alkali and organic solvents
High temperature and low temperature resistance, good mechanical toughness.

Product Testing

Product Performance

Thickness: 0.2mm--100mm
Width: 500~2800mm
Apparent density: 2.10-2.30 g/cm3
Color: white or black
Length: according to your requirement

PTFE sheet is great material for high-temperature and low-friction applications. It has a number of advantages that make it a good choice:

Its coefficient of friction is the third-lowest of any known solid material
It has excellent dielectric properties and is suitable for use as a material for printed circuit boards used at microwave frequencies
PTFE sheet is one of the most thermally stable plastic materials displaying no appreciable decompositions at 260°C and retaining most of its properties
Its high melting temperature makes it a good choice as a high-performance substitute for the weaker and lower melting point polyethylene that is commonly used in low-cost applications

Product Packing

Product Application

PTFE sheet widely used in all chemical containers and parts which contacted with corrosive media, such as tanks, reactors, equipment lining, valves, pumps, fittings, filter materials, separation materials and pipe for corrosive fluids.
PTFE sheet can be used as a self lubricating bearing, piston rings, seal rings, gaskets, valve seats, sliders and rails etc

Frequently Asked Questions

Q1: What temperature range can a PTFE sheet withstand?

A1: PTFE sheets can operate reliably in temperatures ranging from -196°C to +260°C under no-load conditions. They maintain their strength and flexibility even in extreme environments.

Q2: What is the difference between molded and turning PTFE plates?

A2: Molded plates are produced by molding PTFE resin at room temperature, followed by sintering and cooling. Turning (skived) plates are peeled from a pre-sintered PTFE block, allowing for precise control of thickness and flexibility.

Q3: How chemically resistant are PTFE sheets?

A3: PTFE sheets offer outstanding chemical corrosion resistance. They are insoluble in strong acids, strong alkalis, and organic solvents, making them perfect for lining chemical containers and handling corrosive fluids.

Q4: Can PTFE sheets be used as self-lubricating parts?

A4: Yes, PTFE has one of the lowest friction coefficients of any solid material. This self-lubricating property makes it ideal for bearings, piston rings, seal rings, gaskets, and slide rails.

Q5: What are the main applications of PTFE sheets?

A5: PTFE sheets are widely used in chemical containers, valves, pumps, filters, and piping systems. They are also widely utilized in mechanical wear components, gaskets, high-temperature linings, and microwave printed circuit boards.
