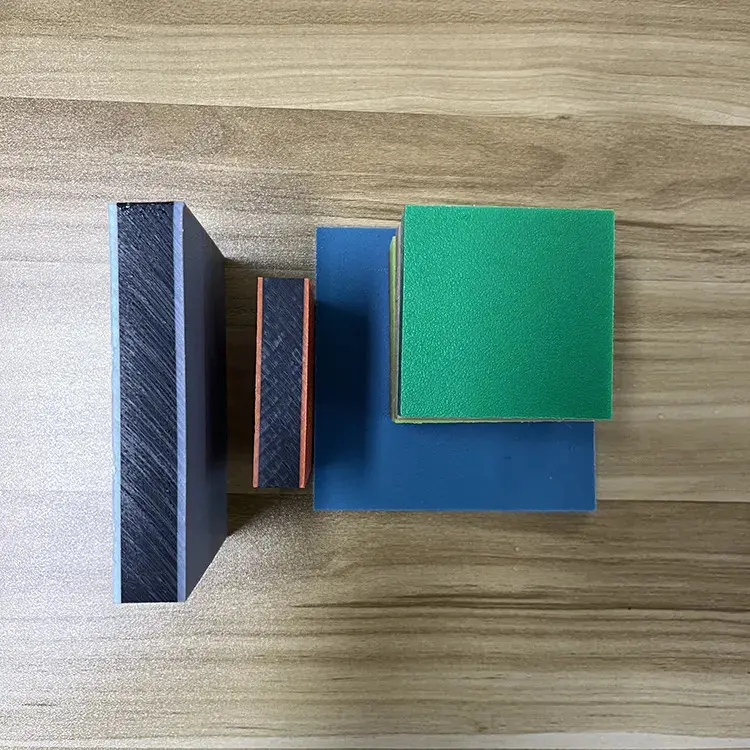

As a large thermoplastic sheet manufacturer in China, we supply both Single and Dual (double) Color HDPE Sheets (plates, boards, panels) to meet diverse market requirements. We utilize the most advanced extruding machinery to produce high-quality HDPE sheets from premium composite materials under precise pressure and temperature conditions.
HDPE sheets feature a waxy texture and a low friction coefficient, making them highly popular for use as wear strips on conveyor lines and production systems.
HDPE Sheets are highly resistant to organic solvents, acids, caustic soda (NaOH), thinners, fruit juices, water, and fats. They are completely harmless and suitable for direct contact with drinking water and food.
Standard Color Options: Red/Yellow/Red, Blue/Black/Blue, Blue/Yellow/Blue, Green/Purple/Green, Purple/Black/Purple, White/Black/White.

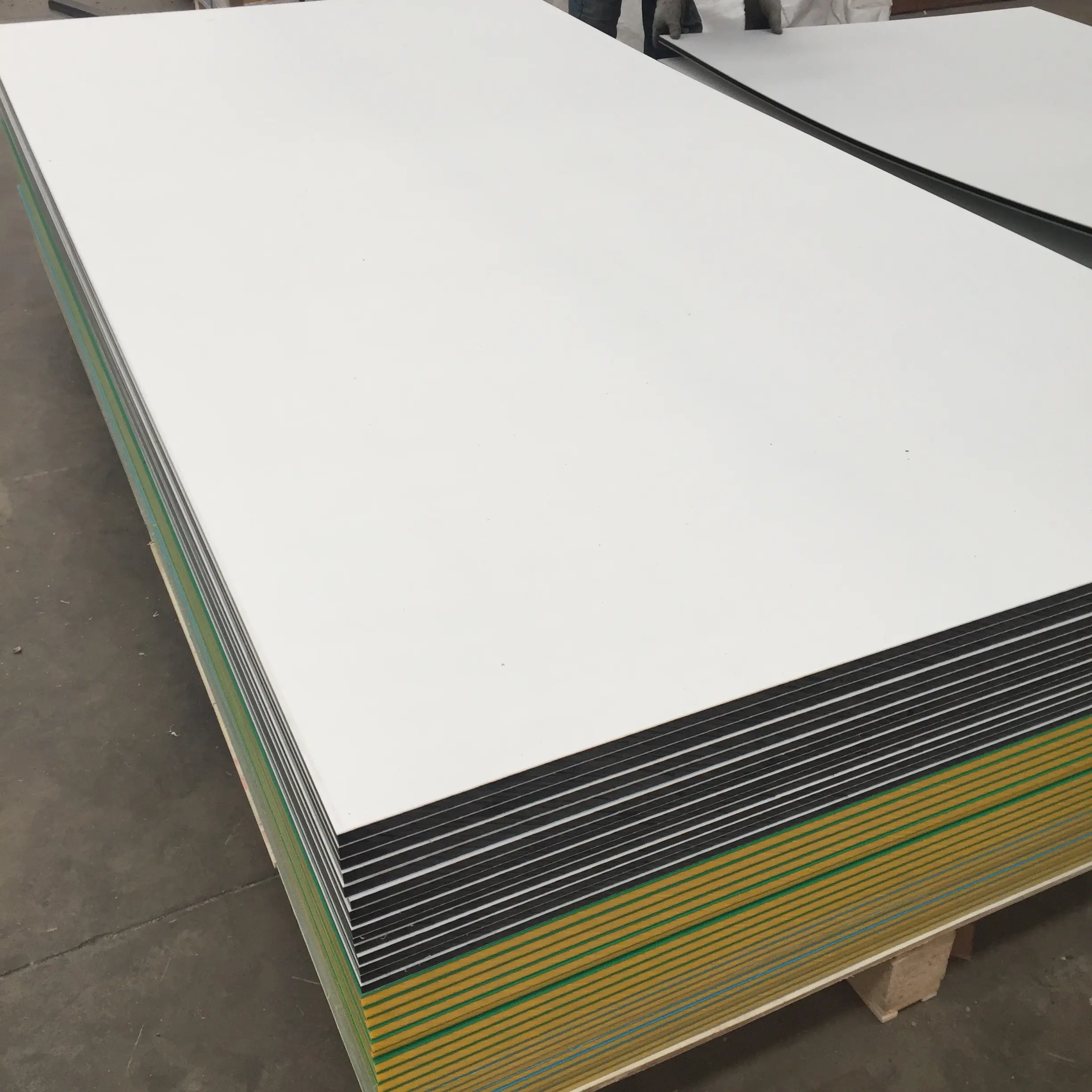

These plastic boards are available in standard 8 x 4 ft sheets (2440mm x 1220mm) in three standard thicknesses: 12.7mm, 15mm, and 19mm. Custom sizes can be produced to order. We also supply solid colored boards if layered color configurations are not required.
| Blue/White/Blue | White/Blue/White | Red/White/Red | White/Red/White | Red/Black/Red |
| Black/Red/Black | Green/White/Green | White/Green/White | Green/Tan/Green | Tan/Green/Tan |
| Yellow/Black/Yellow | Black/Yellow/Black | Brown/Tan/Brown | Tan/Brown/Tan | Brown/White/Brown |
Our HDPE sandwich boards are low maintenance, easy to clean, highly durable, and retain their vibrant color year-round.
We integrate industry and trade operations, removing the middleman markup to deliver the best quality products at direct factory pricing.
We provide full CNC routing services. Send us your design specifications, and we will cut custom patterns, shapes, lettering, and numbering to your exact needs.
We supply HDPE Sandwich Boards in a comprehensive range of dimensions, thicknesses, and color configurations. OEM and ODM projects are welcome.
Equipped with an in-house laboratory, we continuously optimize performance parameters. We support our products with a three-year warranty and dedicated after-sales support.
Our HDPE sheets are engineered for both indoor and outdoor structural applications. They are fully UV-stabilized and guaranteed to perform for at least 8 years.
Unlike traditional wood and composite alternatives, these HDPE sheets do not rot, splinter, chip, or swell, and they are completely termite resistant. They deliver a significantly longer service life in harsh environments. Low moisture absorption rates prevent the growth of mold and fungus.
Our color sheets can be matched to any custom hue you require. They are easy to wash using standard pressure washers, and the low-surface-energy formulation makes the surface highly resistant to graffiti, paint, and adhesives.
Using these durable sheets delivers direct cost savings in both installation labor and structural materials, drastically reducing long-term facility maintenance costs.
Can be routed/cut into to reveal the contrasting core layer for crisp, durable patterns, numbers, letters, or designs.
We offer a complete CNC routing service. Send your design parameters or let us layout patterns, custom shapes, letters, or numbers for fabrication.
Multicolor Formulations: Blue/Black/Blue, Blue/Yellow/Blue, Green/Purple/Green, Purple/Black/Purple, Red/Yellow/Red.
Supplied in standard 8 x 4 foot sheets (2440mm x 1220mm) and three popular thicknesses: 12.7mm, 15mm, and 19mm.
| Property | Unit | Value |
|---|---|---|
| Density | g/cm³ | 0.93 - 0.96 |
| Average molecular weight | g/mol | 3 million - 10 million |
| Tensile strength (23°C in air) | MPa | 22 |
| Breaking strength | MPa | 42 |
| Tensile strain at break | % | 600 |
| Charpy impact strength (notched) | mJ/mm² | No break |
| Ball indentation hardness | N/mm² | 42 |
| Shore D hardness | -- | 65 - 70 |
| Abrasion | % | 70 - 80 (steel = 100) |
| Static Friction Coefficient | -- | ≤ 0.16 |
| Kinetic Friction Coefficient | -- | ≤ 0.10 |
| Water Absorption | -- | NIL |
| Elongation at break at 23 degrees | % | ≥ 300 |
| Temperature resistance | °C | -269 to +85 |
| Melt Temperature | °C | 130 - 140 |
Outdoor recreational facilities / Sports venues / Carved signs door house furniture / Playground Equipment Decorative Elements / Prototypes.
We look forward to receiving your enquiries.
