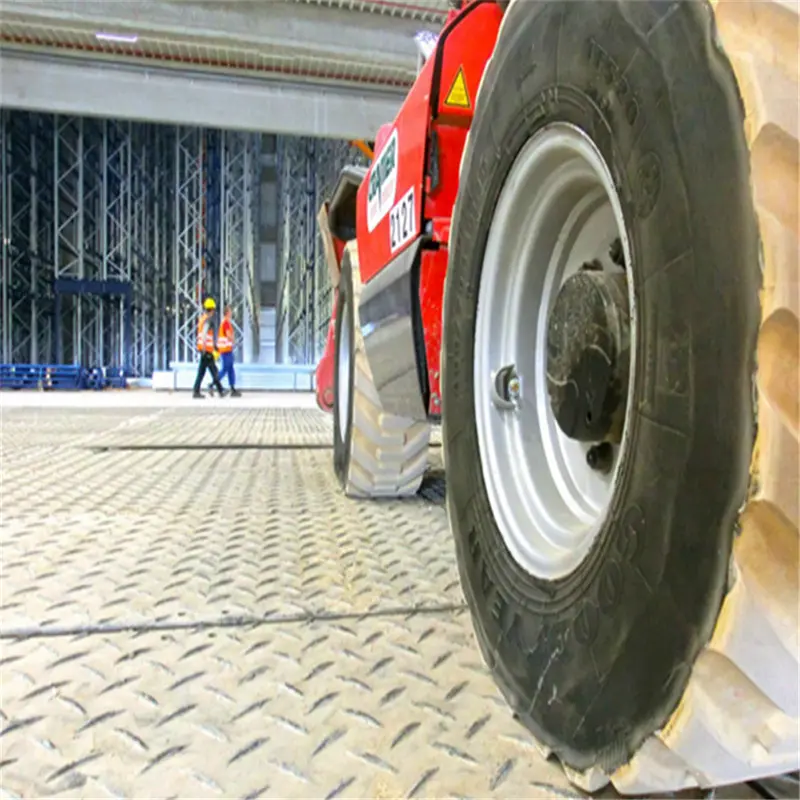

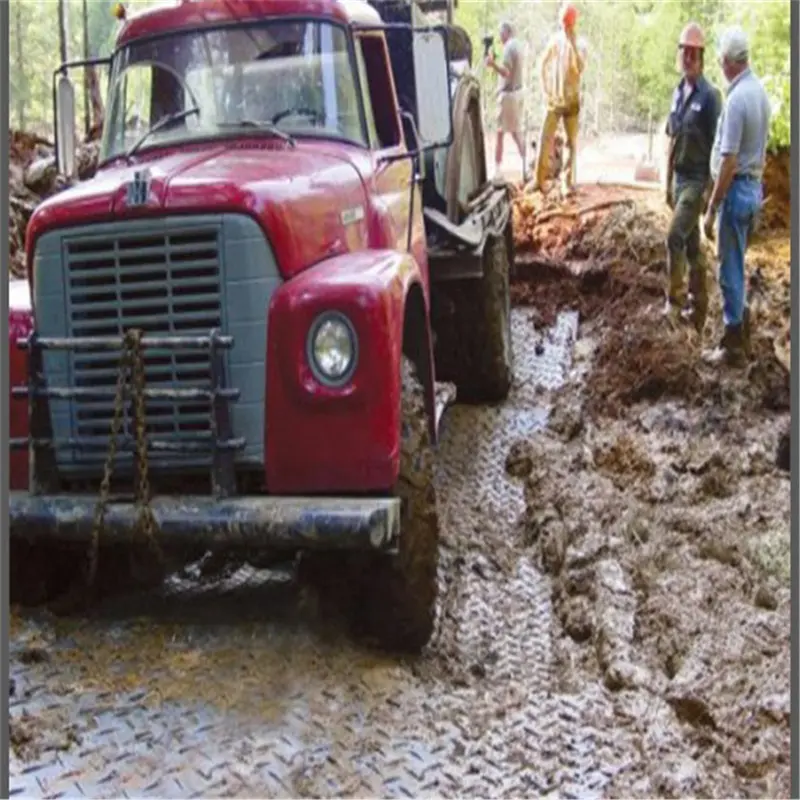

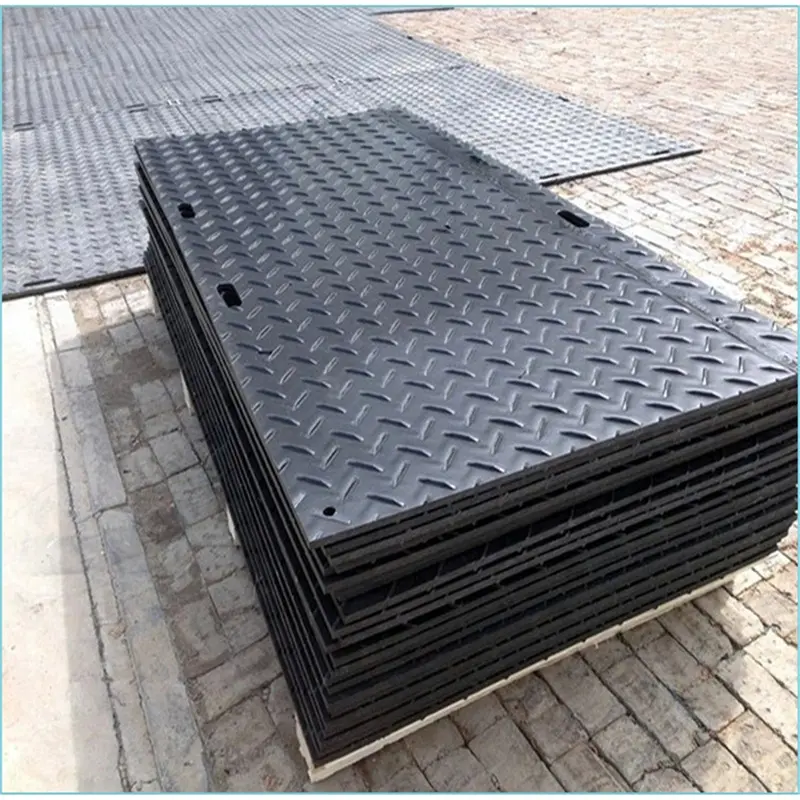

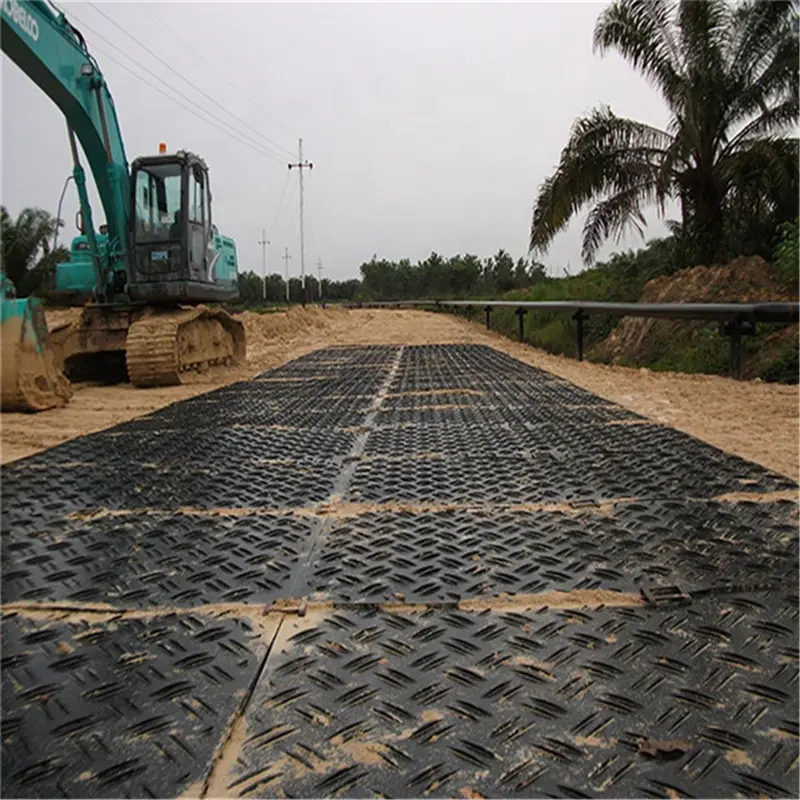

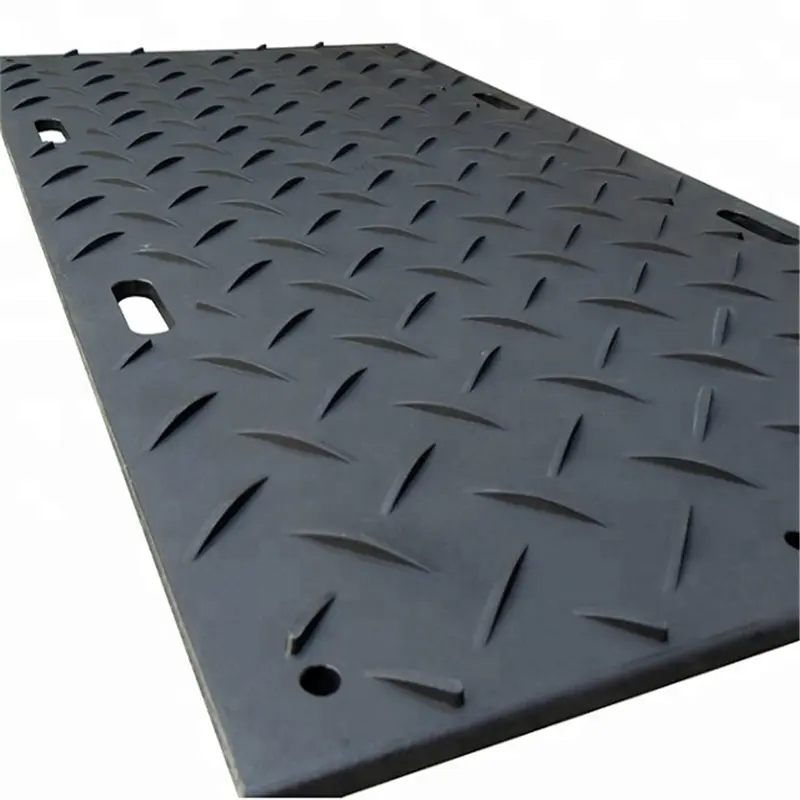

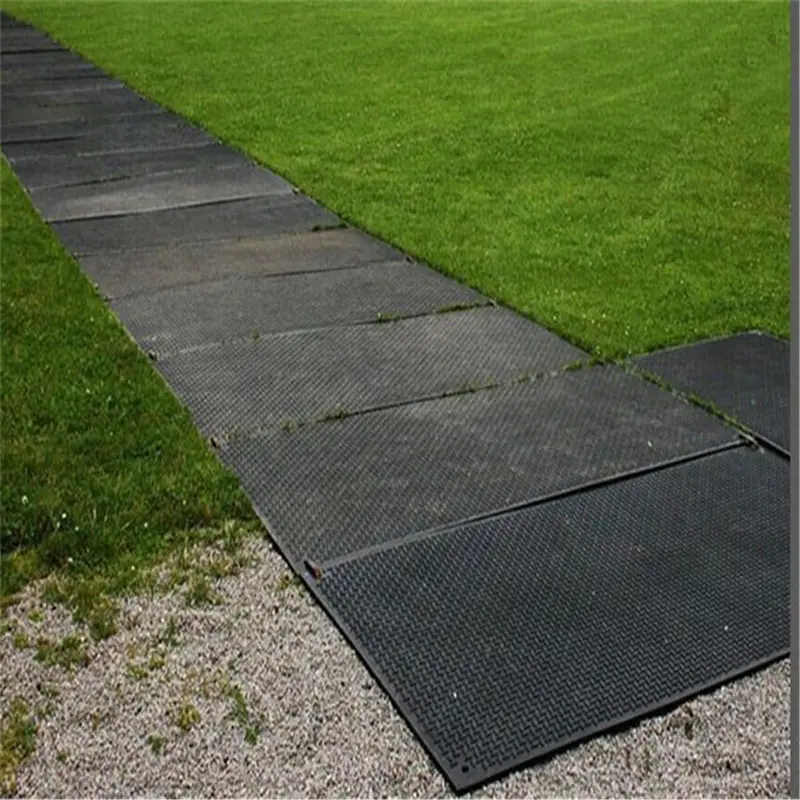

This heavy duty ground protection mat creates an instant roadway over virtually any type of terrain including mud, sand, marshy, uneven or soft terrain. It is ideal for protecting valuable turf during landscaping projects and offers a superior alternative to plywood and fibreglass. It will not warp, rot, crack or delaminate, and is constructed from rugged HDPE. Save time & labour getting vehicles and equipment traversed over difficult terrain and avoid potential injuries incurred while dislodging vehicles and equipment from mud. The ground protection mat also protects vehicles and equipment from excessive wear and damage due to operating on unstable ground conditions.

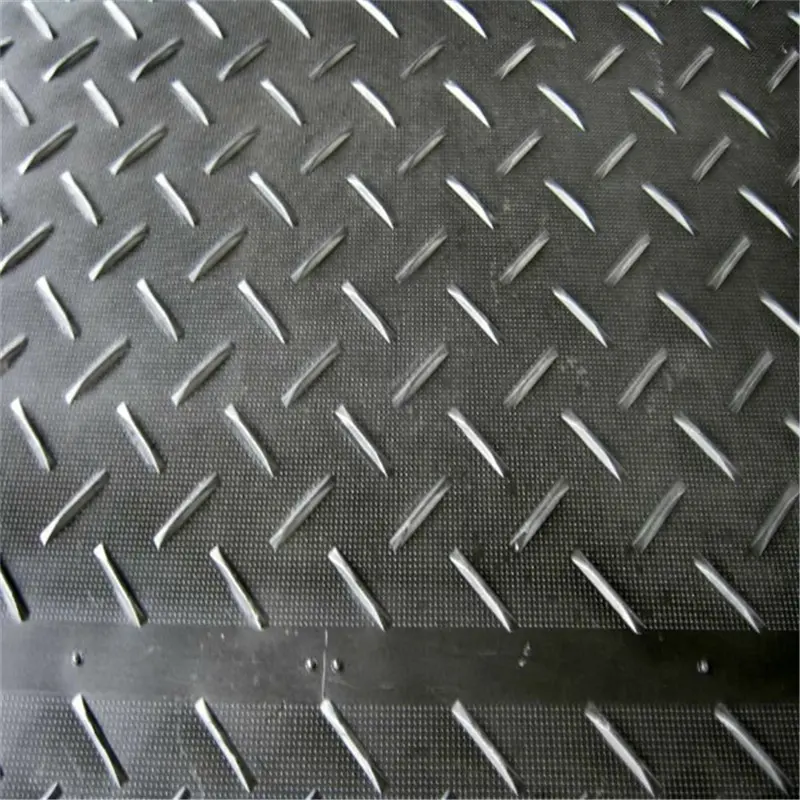

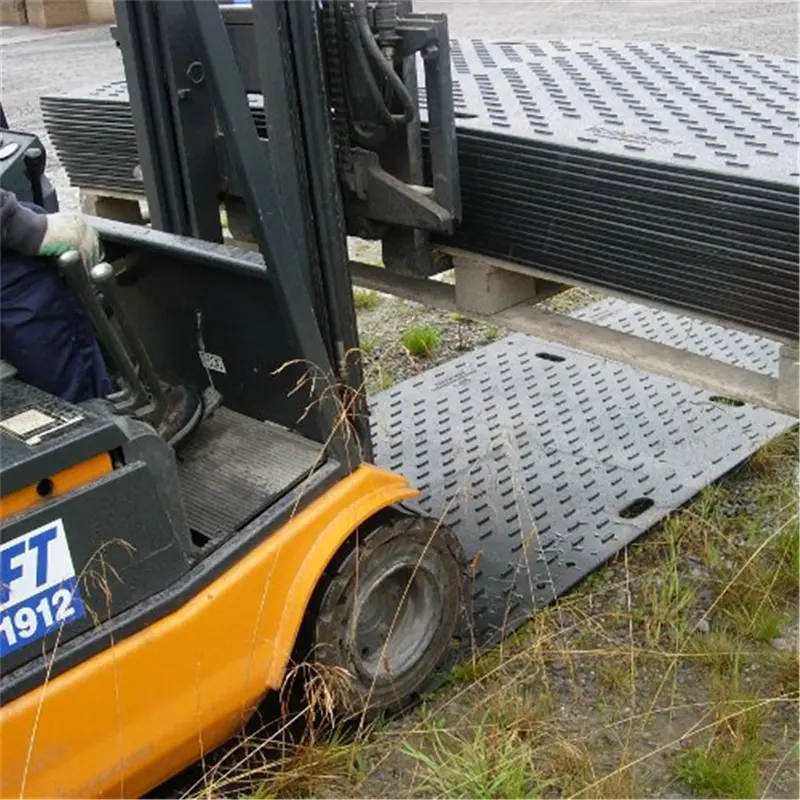

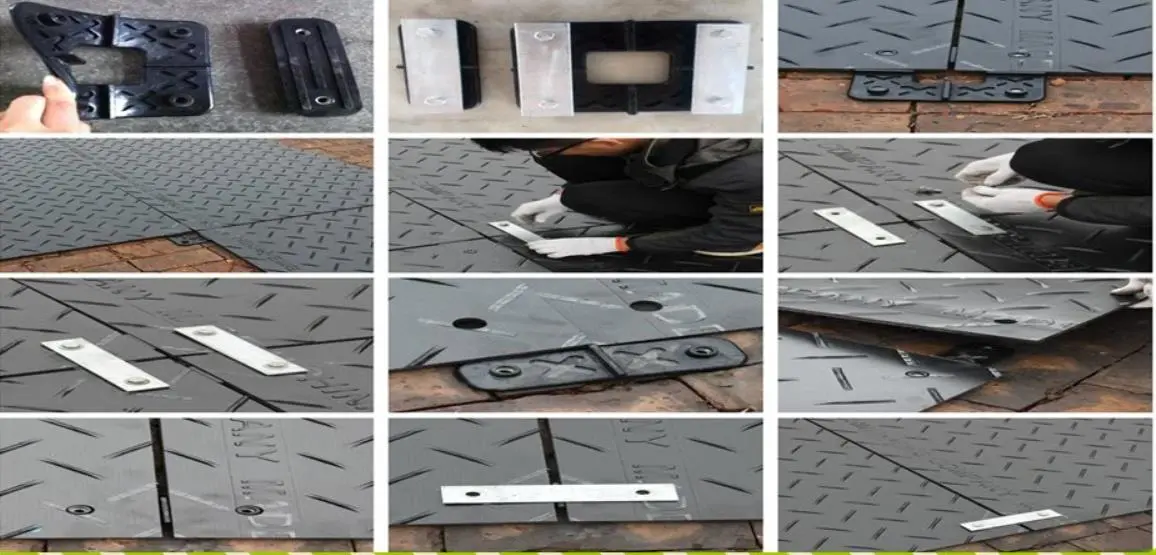

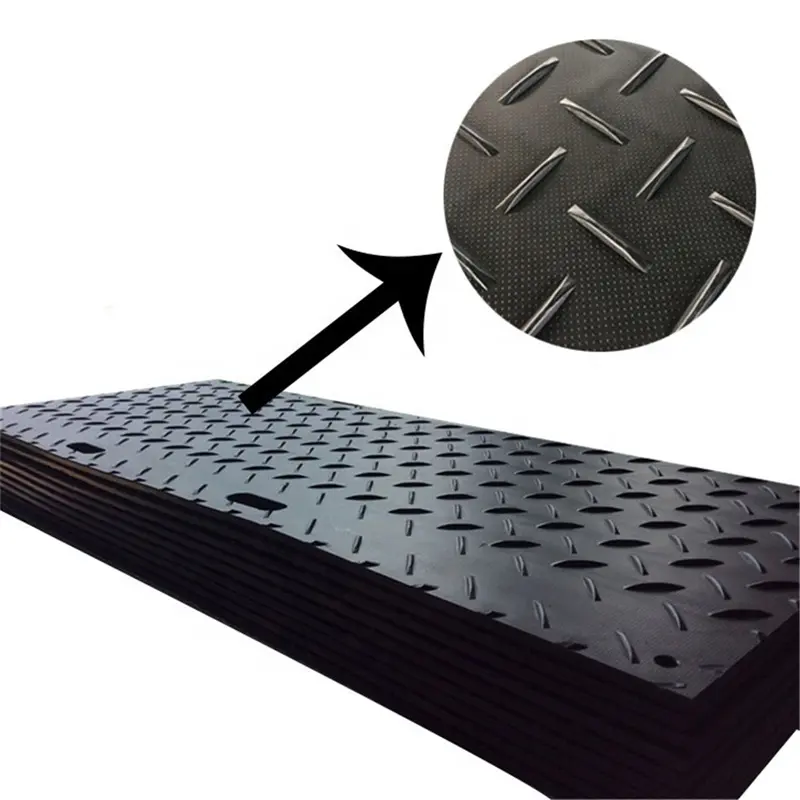

Easily handled and laid by two workers, it eliminates the need for expensive cranes. This mat can be laid as two parallel tracks or a single roadway, linked together with metal connections. It is easily cleaned due to a less aggressive lug pattern, and is extremely durable, withstanding vehicle weights up to 80 tonnes.
| Product Name | Plastic PE Ground Protection Mat For Uneven Surfaces |
|---|---|
| Material | HDPE |
| Standard Size | 1220x2240mm, 2000x5900mm |
| Thickness | 10-30mm |
| Delivery Time | 15-45 days according to the order quantity |
| OEM Service | Size, Logo, Color |

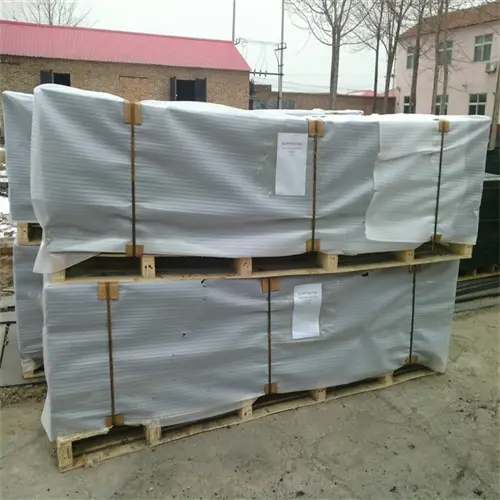

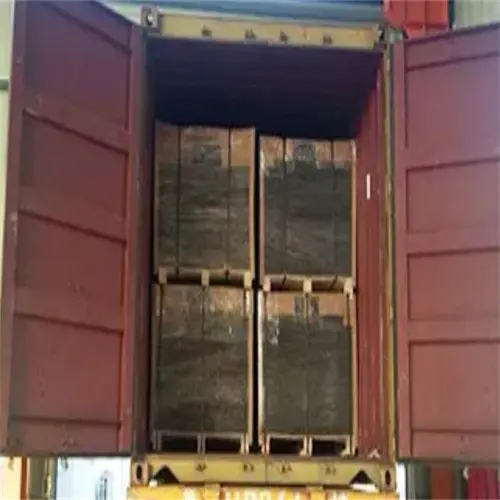

| Packing | Pallet |
| Series No. | Size (mm) | Thickness with texture (mm) | Unit weight (kg) | Effective Surface Area (sqm) | Load Capacity (tons) |
|---|---|---|---|---|---|
| 01 | 2000*1000*10 | 20 | 22.6 | 2.00 | 30 |
| 02 | 2440*1220*12.7 | 22.7 | 42 | 2.98 | 40 |
| 03 | 5900*2000*28 | 36 | 346 | 11.8 | 120 |
| 04 | 2900*1100*12.7 | 22.7 | 45 | 3.20 | 50 |
| 05 | 3000*1500*15 | 25 | 74 | 4.50 | 80 |
| 06 | 3000*2000*20 | 28 | 128 | 6.00 | 100 |
| 07 | 2400*1200*12.7 | 22.7 | 40.5 | 2.88 | 40 |
| Physical Properties | ASTM | Unit | Value |
|---|---|---|---|
| Density | D1505 | g/cm3 | 0.96 |
| Melt Index | D1238 | g/10min | 0.5 |
| Brittleness Temperature | D746 | °C | <-40 |
| Shore D Hardness | D2240 | - | 65 |
