China CF30% PEEK Rod Sheet Manufacturers, Suppliers

Send Inquiry

Product Description

Product Detail

PEEK engineering plastics have a broad application space related to aviation, machinery, electronics, chemical industry, automobiles and other high-tech industry. Alternative to fluoropolymers, these sheets are applicable for manufacturing insulation materials, gears, bearings, bushes and valves. Mechanical parts and accessories can be manufactured in stringent requirements, such as gears, bearings, piston rings, supporting rings, sealing rings, valves, and other wear circles.

Product Features

✓High thermal deformation temperature
✓Good processability
✓Inherent flame retardant
✓High energy radiation resistant
✓Good sliding and wear resistance
✓Good creep resistance
✓Very good chemical resistance
✓Resistance to hydrolysis and superheated steam

Product Specifications

PEEK ROD Specification

Specification (mm)	Tolerance (mm)	Weight per rod (kg)
6*1000	0.2~0.8	0.047
8*1000	0.2~0.8	0.077
10*1000	0.2~0.8	0.12
12*1000	0.2~0.8	0.168
15*1000	0.2~0.8	0.278
20*1000	0.2~0.8	0.47
22*1000	0.2~0.8	0.5
25*1000	0.2~0.8	0.7
30*1000	0.2~0.8	1
35*1000	0.2~0.8	1.35
40*1000	0.2~0.8	1.75
45*1000	0.2~0.8	2.2
50*1000	0.2~0.8	2.7
55*1000	0.2~0.8	3.2
60*1000	0.2~0.8	3.95
65*1000	0.2~0.8	4.5
70*1000	0.2~0.8	5.34
75*1000	0.2~0.8	5.92
80*1000	0.2~0.8	7.05
85*1000	0.2~0.8	7.62
90*1000	0.2~0.8	8.8
100*1000	0.2~0.8	11
110*1000	0.2~0.8	12.6
120*1000	0.2~0.8	15.2
130*1000	0.2~0.8	18.3
140*1000	0.2~0.8	21.1
150*1000	0.2~0.8	24.15
160*1000	0.2~0.8	-

PEEK SHEET Specification

Specification (mm)	Tolerance (mm)	Weight per sheet (kg)
60012005	0.2~0.8	5.35
60012006	0.2~0.8	6.65
60012008	0.2~0.8	8.5
600120010	0.2~0.8	10.45
600120012	0.2~0.8	12.55
600120015	0.2~0.8	15.05
600120020	0.2~0.8	20.6
600120025	0.2~0.8	25.5
600120030	0.2~0.8	31.65
600120035	0.2~0.8	36.5
600120040	0.2~0.8	40.5
600120050	0.2~0.8	51.7
600120060	0.2~0.8	61.35

Product Parameters

NO.	Item no.	Unit	PEEK-1000	PEEK-CA30	PEEK-GF30
1	Density	g/cm3	1.31	1.41	1.51
2	Water absorption (23℃ in air)	%	0.20	0.14	0.14
3	Tensile strength	MPa	110	130	90
4	Tensile strain at break	%	20	5	5
5	Compressive stress (at 2% nominal strain)	MPa	57	97	81
6	Charpy impact strength (unnotched)	KJ/m2	No break	35	35
7	Charpy impact strength (notched)	KJ/m2	3.5	4	4
8	Tensile modulus of elasticity	MPa	4400	7700	6300
9	Ball indentation hardness	N/mm2	230	325	270
10	Rockwell hardness	--	M105	M102	M99

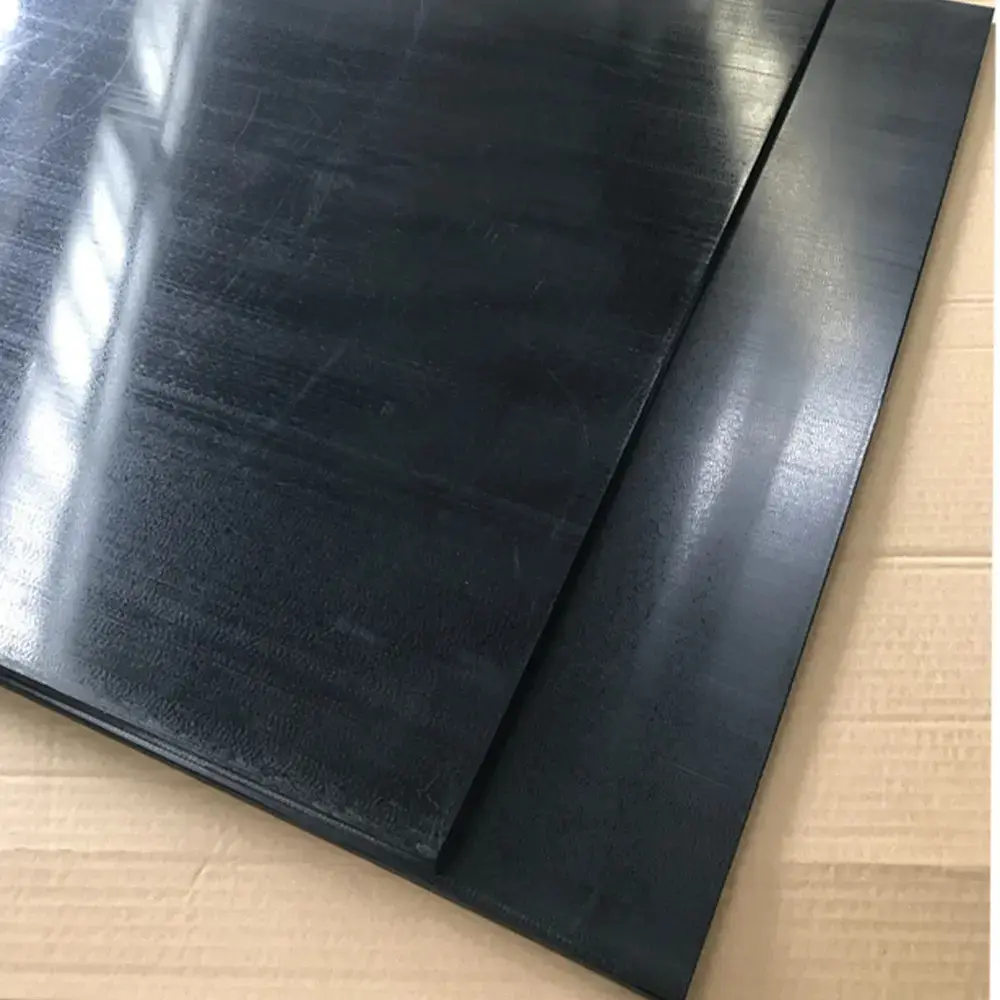

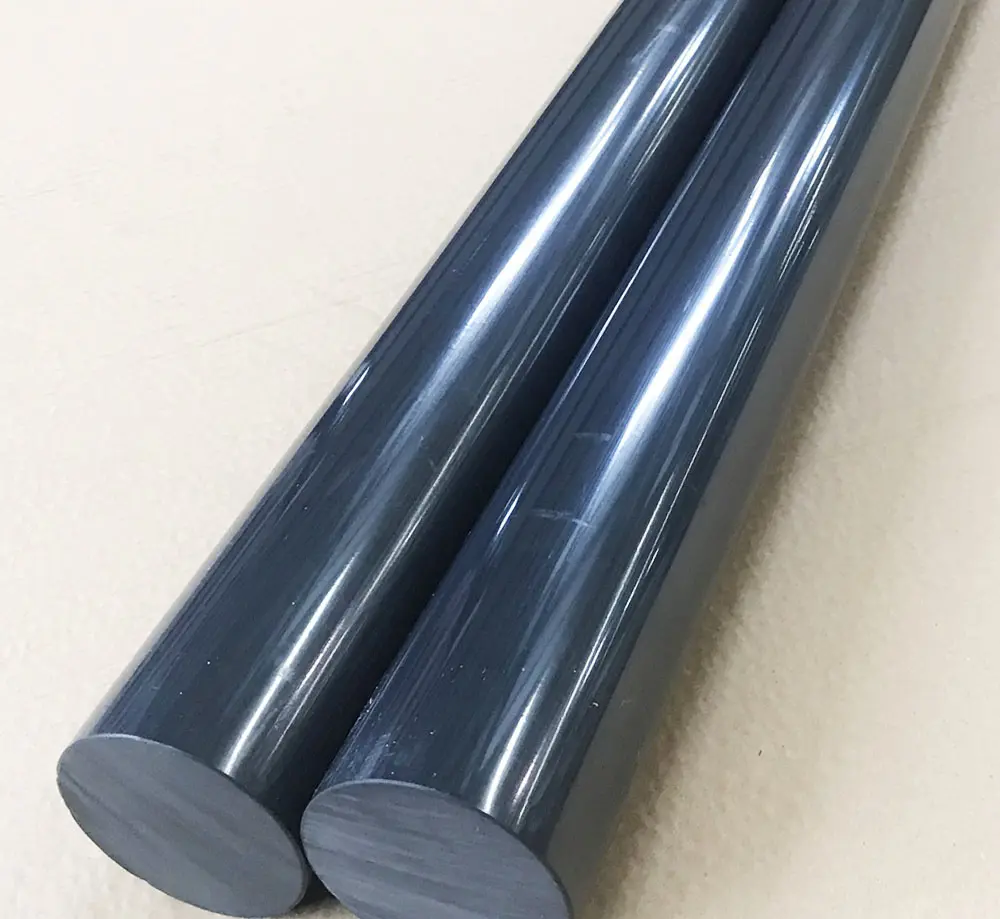

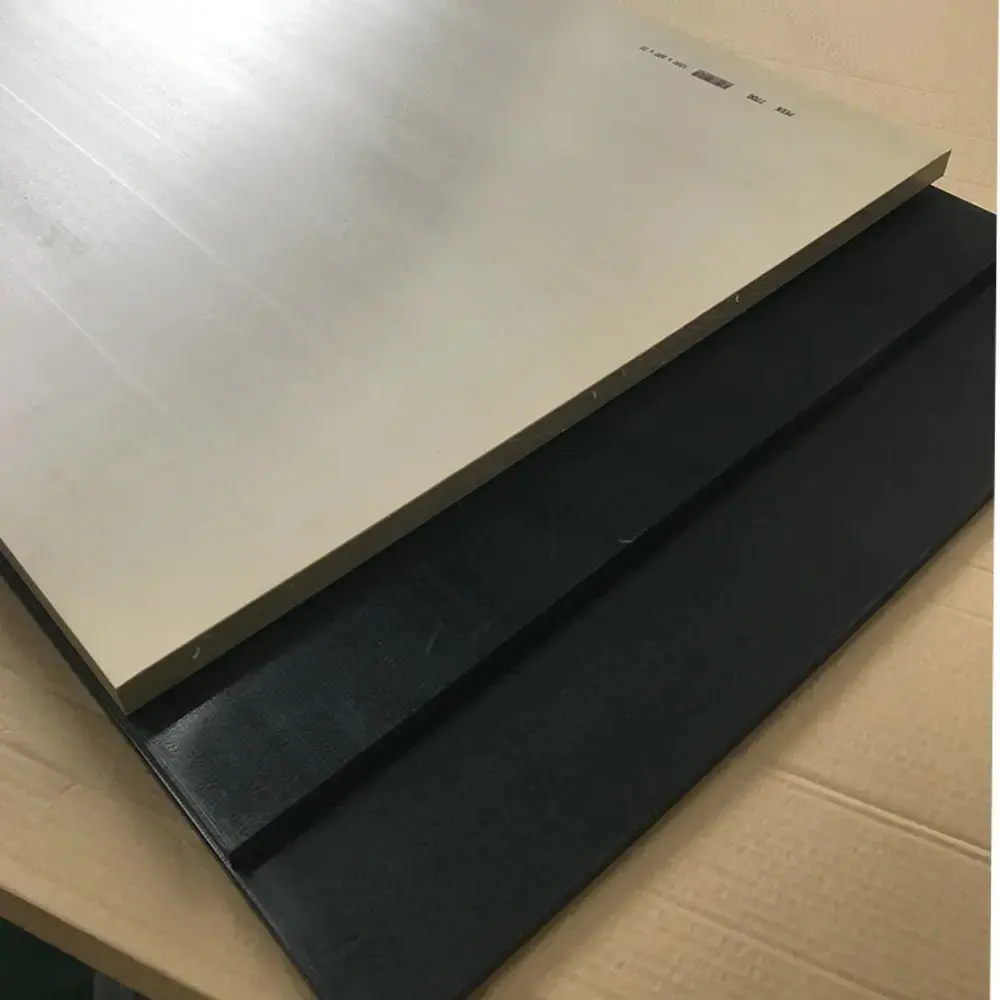

Product Photos

Product Warehouse

Product Package

Product Application

Frequently Asked Questions (FAQ)

What are the primary application fields for PEEK engineering plastics?

PEEK is widely utilized in high-tech industries including aviation, machinery, electronics, chemical processing, and automotive sectors. It is ideal for demanding components such as gears, bearings, piston rings, sealing rings, and valves.

Can PEEK serve as an alternative to fluoropolymers?

Yes, PEEK sheets and rods are highly effective alternatives to fluoropolymers, especially in manufacturing high-performance insulation materials, gears, bushes, and components with strict wear resistance requirements.

What thermal properties does PEEK offer?

PEEK materials exhibit a high thermal deformation temperature and excellent resistance to hydrolysis and superheated steam, allowing them to perform reliably in extreme thermal environments.

How do PEEK-1000, PEEK-CA30, and PEEK-GF30 compare in tensile strength?

PEEK-1000 features a tensile strength of 110 MPa. PEEK-CA30 offers a higher tensile strength of 130 MPa due to reinforcement, while PEEK-GF30 measures at 90 MPa.

Is PEEK resistant to chemicals and wear?

Yes, PEEK offers exceptional chemical resistance, superb creep resistance, inherent flame retardancy, and outstanding sliding and wear resistance properties.
