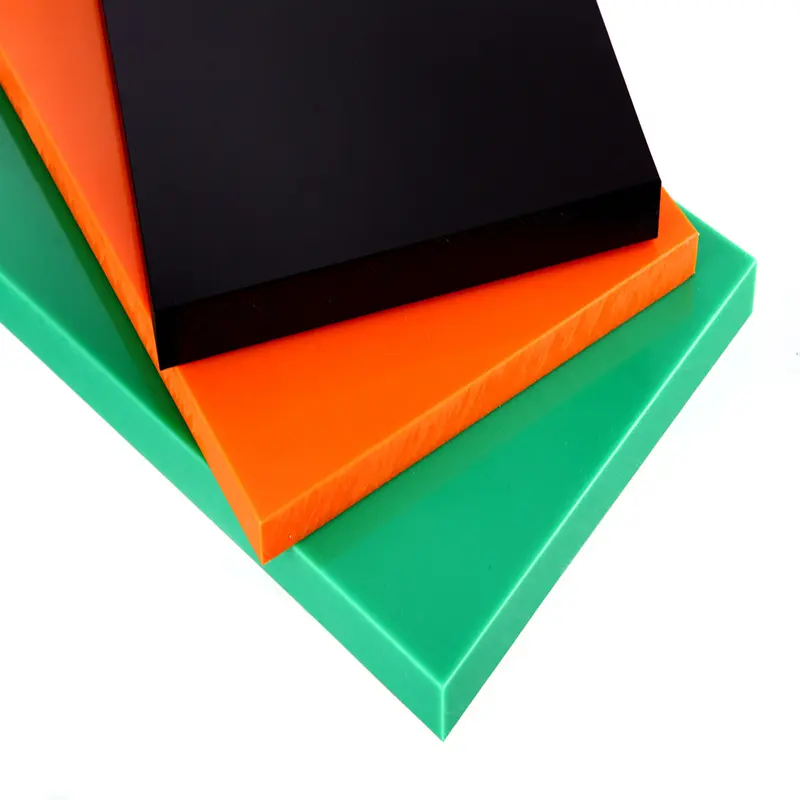

HDPE (High-Density Polyethylene) is a petroleum‑based thermoplastic polymer known for its high strength, rigidity, and properties such as corrosion resistance, impact resistance, and low water absorption. As one of the most widely used plastic materials, HDPE is weldable, easy to process, safe, non‑toxic, and compliant with food‑grade standards. It is also environmentally friendly and fully recyclable, making it an ideal choice for sustainable industrial and consumer applications.
| Property | Details |
|---|---|
| Thickness | 0.5mm - 150mm |
| Standard Size | 1220*2440mm, 1300*2000mm, 1500*2000mm, or according to your need |
| Surface | Smooth, Matte, Orange peel texture and embossed (anti-skid) |
| Color | Nature, white, black, yellow, green, blue, red, multicolor etc |
| Processing Service | CNC machining, milling, moulding, fabrication and assembly |
| Application | Textiles, Papermaking, Packaging, Transportation, Chemical, Mining, Agriculture, Construction, Electrical, Food, Medical, Sports and so on. |
Our company has obtained ISO9001 Quality Management System certification and is accredited by authoritative institutions such as SGS and Bureau Veritas. We consistently adhere to stringent quality control standards and fully support third-party inspection, ensuring that every stage from raw material procurement to finished product delivery complies with the highest industry specifications. This commitment allows us to provide customers with reliable, high-quality products and service assurance.
| Serial Number | Test Items | Unit | Test Result | Detection Method |
|---|---|---|---|---|
| 1 | Tensile Strength | Mpa | 15.2 | GB/T1040.1-2018 |
| 2 | Elongation at break | % | 754 | GB/T1040.1-2018 |
| 3 | Bending strength | Mpa | 15.7 | GB/T9341-2008 |
| 4 | Rockwell hardness | - | 56 | GB/T3398.2-2008 |
| 5 | Load deformation temperature | ℃ | 82 | GB/T1634.1-2019 |

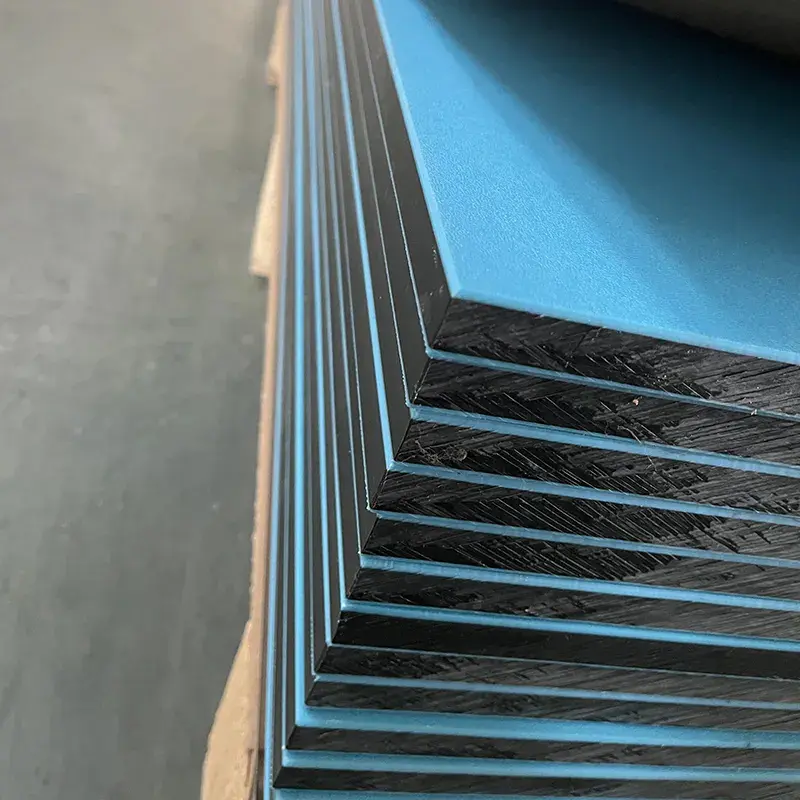

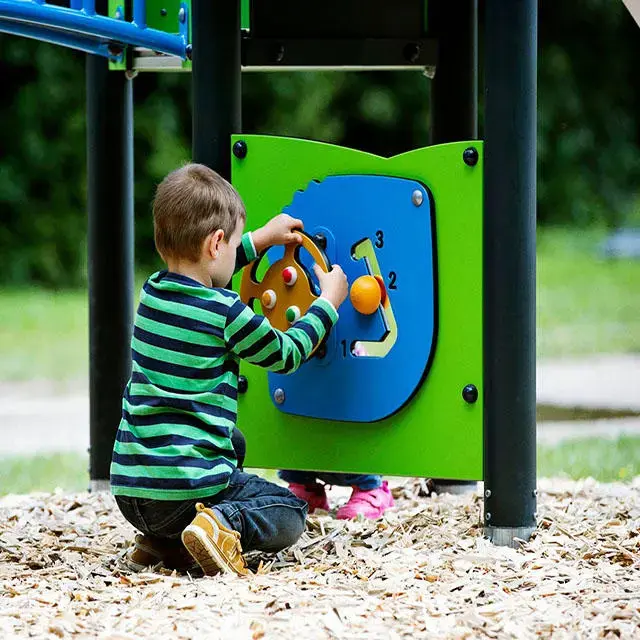

HDPE three-layer coextruded sheet is produced through a multi-layer co-extrusion process. It combines the color zoning function with the corrosion resistance and easy processability of HDPE material, and is now widely used in scenarios that demand high safety, environmental friendliness, visual appeal, and durability, such as commercial signage and playground equipment.

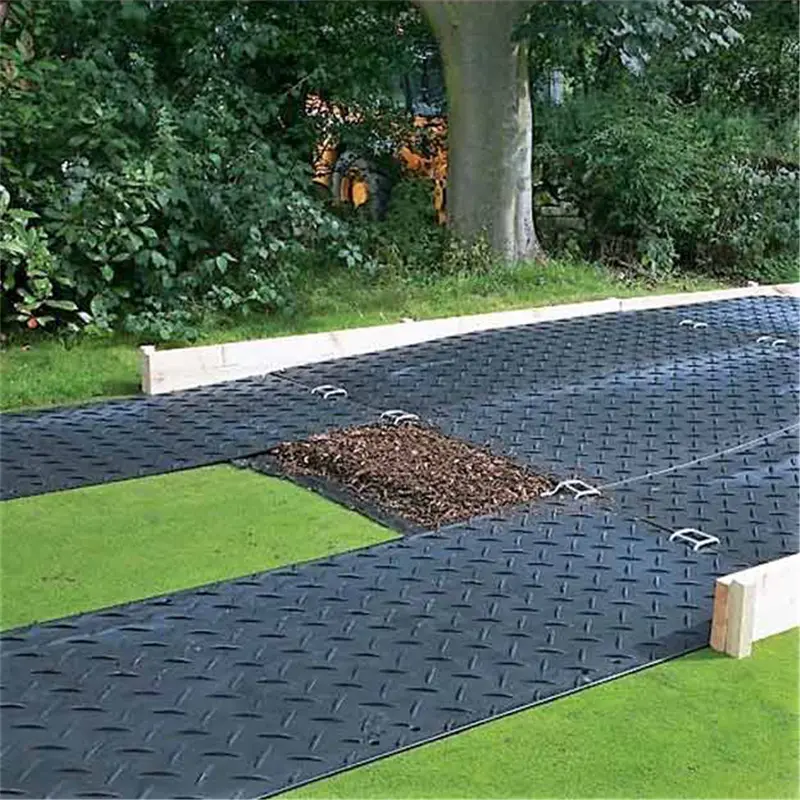

HDPE material serve as excellent materials for manufacturing PE Ground Protection mats. They provide the necessary strength and toughness to minimize deformation under heavy loads, ensuring stable and reliable support for equipment. Similarly, HDPE is an ideal choice for road plates, offering a durable, non-slip, and wear-resistant surface suitable for heavy-duty truck traffic and temporary road applications.
The food industry clearly points out that all materials that come into contact with food must be non-toxic, water-resistant and non-adhesive. UHMWPE is considered to be one of the materials that can be in direct contact with food. It has the advantages of no water absorption, no cracking, no deformation, and no mildew, making it an ideal accessory material for beverage and food conveyor lines. UHMWPE has good cushioning, reduced noise, reduced wear, low maintenance costs, and reduced power loss. Therefore, it can also be used to manufacture parts in production equipment such as meat deep processing, snacks, milk, candy and bread.
Once the wear resistance of HDPE material was discovered, the super wear resistance made it unique, attracting a large number of users and firmly occupying a place in wear-resistant accessories, especially chain guides. Benefiting from its excellent wear resistance and impact resistance, it is widely used in the machinery manufacturing industry and can be used to make various mechanical parts such as gears, cams, impellers, rollers, pulleys, bearings, bushings, cut shafts, gaskets, elastic couplings, screws, etc.
The high wear resistance, high impact resistance and self-lubricating properties of UHMWPE sheet make it suitable for the lining of hoppers, silos and chutes of coal, cement, lime, mines, salt and grain powdery materials. It can effectively avoid the adhesion of the conveyed material and ensure a stable transportation.
HDPE sheet is an engineered plastic board made from high-density polyethylene, characterized by high strength, corrosion resistance, easy processing, safety, and environmental friendliness. It is widely used in chemical, food, construction, logistics, and other fields, serving as an economical and versatile industrial material.
Both are polyethylene, but their molecular weights differ. High-density polyethylene (HDPE) refers to polyethylene with a molecular weight of 1.5 million or less, while ultra-high molecular weight polyethylene (UHMWPE) refers to polyethylene with a molecular weight of 1.5 million or more.
We utilize CNC machining centers, CNC lathes, milling machines, engraving machines, and molding machines to deliver precise and customized industrial parts.
We offer a variety of standard sizes of UHMWPE sheets (e.g., standard thicknesses 10-260mm), and fully support customized sizes, shapes, and colors (base color is off-white, black is available as a customization option). Unit price, minimum order quantity, and delivery time will be flexibly determined based on specific specifications, quantity, and process requirements. The delivery time for standard products is approximately 3-15 working days. For complex customizations, the delivery time will be discussed with the customer. To better serve our customers, we accept small orders.
Our products have passed ISO9001 quality management system certification and have certifications from authoritative third-party organizations such as SGS and BV. We can provide third-party material performance testing reports according to customer requirements to ensure that all physicochemical indicators meet international standards.
We offer professional services covering the entire process:
Pre-sales: Free technical consultation and selection support; 24-hour response time upon receiving an inquiry; and customized design services such as 3D modeling based on customer samples.
Sales: Regular progress updates during production to ensure you stay informed about your order status.
After-sales: Clear quality assurance policies and dedicated after-sales channels; solutions to customer feedback issues typically provided within 24 hours, ensuring a superior user experience.
