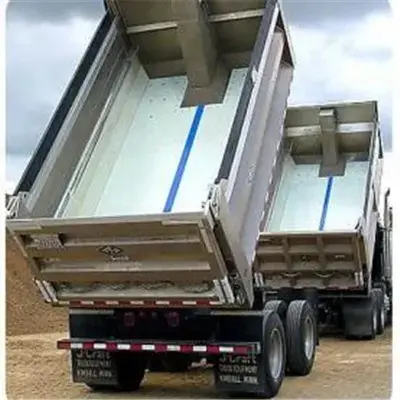

OEM High Abrasion UHMWPE HDPE Haul Truck Liner PE 1000 PE 500 Sheet for Dump Trucks Suppliers, Factories

Product Detail

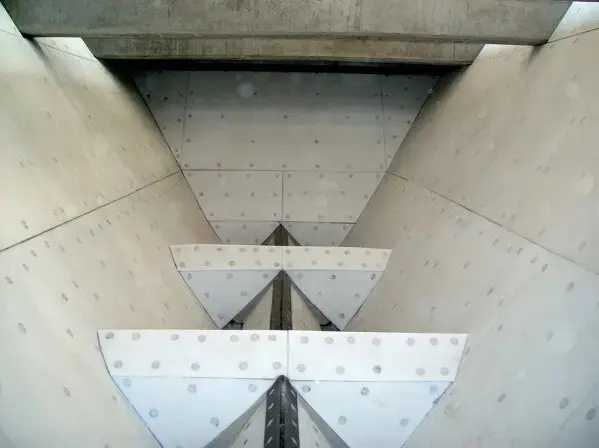

UHMWPE liner is a type of plastic liner that is made from ultra high molecular weight polyethylene (UHMW PE), which is a thermoplastic polymer with a molecular weight of more than 3 million g/mol. UHMW PE is one of the highest performing engineering plastics in terms of mechanical properties, such as self-lubricating, impact strength, wear resistance, and friction coefficient. UHMW PE liner is used to protect metal surfaces from abrasion and corrosion, and promote material flow and reduce sticking in various applications, such as chutes, hoppers, bins, silos, conveyors, crushers, screens, etc.

UHMWPE liner is a versatile and durable plastic liner that can improve the performance and efficiency of various equipment and machinery. It is widely used in the mining, quarrying, mineral processing, cement, chemical, food, paper, and other industries. UHMW PE liner is a proven solution for many challenging applications that require high impact strength, high wear resistance, low friction coefficient, chemical resistance, easy installation, and cost-effectiveness.

Product Parameter

Properties	Test Method	Unit	Value
Density	DIN EN ISO 1183-1	g / cm³	0.93
Hardness	DIN EN ISO 868	Shore D	63
Molecular Weight	-	g/mol	1.5 - 9 million
Yield stress	DIN EN ISO 527	MPa	20
Elongation at Break	DIN EN ISO 527	%	>250
Melting temperature	ISO 11357-3	°C	135
Notched impact strength	ISO11542-2	Kj/m²	≥120
Vicat Softening Point	ISO306	°C	80
Water absorption	ASTM D570	/	Nil

Product Feature

1. Excellent abrasion resistance

Marine fender pad of UHMWPE material outwear hardened steel. Cuts hour-glass wear on pilings from vertically moving "camels".

2. No moisture absorption

Marine fender pad of UHMWPE material no swelling or deterioration from water permeation.

3. Chemical and Corrosion Resistant

Marine fender pad of UHMWPE material withstands salt water, fuel and chemical spills. Chemically Inert does not leach chemicals into waterways, disturbing fragile ecosystems.

4. Performs in Weather Extremes

Sub-zero conditions do not degrade performance. Marine fender pad of UHMWPE material retains key physical properties to -260 centigrade. UHMWPE material is UV-resistant, which increases wear life in seaport exposures.

UHMWPE fender pads feature:

Highest abrasion resistance of any polymer, 6 times more wear resistance than steel
Anti-weather & anti-aging
Self-lubricating and very low coefficient of friction
Excellent chemical & corrosion resistant; Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity
Superior impact resistant, noise-absorption and vibration-absorption
Low water absorption <0.01% water absorption and not affected by temperature
Temperature range: -269ºC~+85ºC
