| Item | Test Method | Reference Range | Unit |
|---|---|---|---|
| Molecular Weight | Viscosimetric | 3-9 million | g/mol |
| Density | ISO 1183-1: 2012 / DIN 53479 | 0.92-0.98 | g/cm³ |
| Tensile Strength | ISO 527-2:2012 | ≥20 | Mpa |
| Compression Strength | ISO 604: 2002 | ≥30 | Mpa |
| Elongation at break | ISO 527-2:2012 | ≥280 | % |
| Hardness Shore -D | ISO 868-2003 | 60-65 | D |
| Dynamic friction coefficient | ASTM D 1894 / GB10006-88 | ≤0.20 | / |
| Notched Impact Strength | ISO 179-1:2010 / GB/T1043.1-2008 | ≥100 | kJ/m² |
| Vicat softening point | ISO 306-2004 | ≥80 | ℃ |
| Water Absorption | ASTM D-570 | ≤0.01 | % |
| Processing Method | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Molded Sheet Size | 1000 | 1000 | 10-150 |
| 1240 | 4040 | 10-150 | |
| 2000 | 1000 | 10-150 | |
| 2020 | 3030 | 10-150 | |
| Extruded Sheet Size |
Width: Thickness > 20mm (max 2000mm); Thickness ≤ 20mm (max 2800mm) Length: Unlimited Thickness: 0.5 mm to 60 mm |
||
| Sheet Color | Natural, black, white, blue, green, and so on. | ||
Guide rail, conveyor belt, conveyor slide block seat, fixed plate, assembly line timing star wheel.
Star wheel, bottle feeding counting screw, filling machine bearing, bottle grabbing machine parts, gasket guide pin, cylinder, gear, roller, sprocket handle.
Suction box cover, deflector wheel, scraper, bearing, blade nozzle, filter, oil reservoir, anti-wear strip, felt sweeper.
Slitting machine, shock absorber baffle, connector, crankshaft connecting rod, shuttle rod, sweeping needle, offset rod bearing, swing back beam.

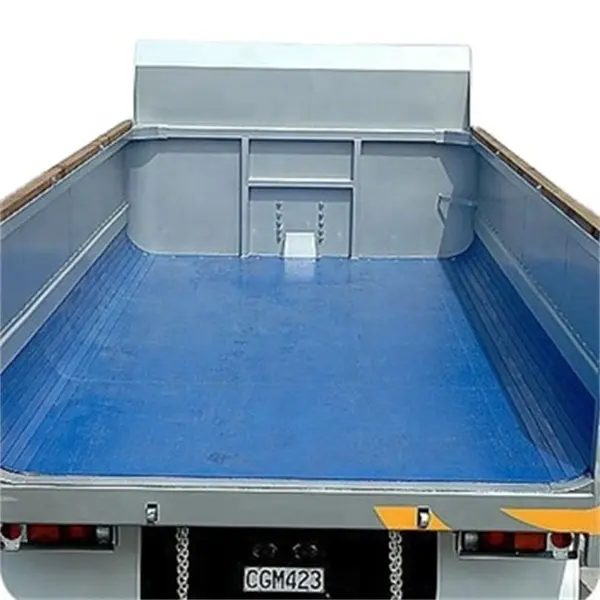

Bulldozer pushes up the sheet material, dump truck compartment material, tractor pear knife lining, outrigger pad, ground protection mat.
Valve body, pump body, gasket, filter, gear, nut, sealing ring, nozzle, cock, sleeve, bellows.
Ship parts, side rollers for bridge cranes, wear blocks and other spare parts, marine fender pad.
Various gears, bearing bushes, sliding plates, clutches, guides, brakes, hinges, elastic couplings, rollers, supporting wheels, fasteners, sliding parts of lifting platforms.
Snow lining, powered sled, ice rink pavement, ice rink protection frame.
Rectangular parts, artificial joints, prostheses, etc.
UHMWPE stands for Ultra-high-molecular-weight polyethylene. It consists of extremely long polymer chains with a molecular mass between 3 and 9 million g/mol. These long chains transfer load more effectively to the polymer backbone, which gives it the highest impact strength and toughness of any thermoplastic material available today.
UHMWPE features incredible high abrasion and wear resistance, low coefficient of friction, high resistance to corrosive chemicals, odorless and non-toxic properties, and extremely low moisture absorption (under 0.01%).
Molded sheets are available in standard sizes like 1000x1000 mm, 2000x1000 mm, 1240x4040 mm, and 2020x3030 mm with thicknesses from 10 mm to 150 mm. Extruded sheets can be supplied in custom lengths with thicknesses ranging from 0.5 mm to 60 mm.
Yes, we can provide sheets in various colors including natural (transparent/white), black, blue, green, and other colors depending on specific project needs.
It maintains excellent performance and impact resistance even at extremely low temperatures. It is widely used in harsh conditions, such as winter stationery machinery, outrigger pads, and general machinery parts exposed to freezing weather.
Absolutely. Because UHMWPE is completely non-toxic, odorless, tasteless, and possesses zero moisture absorption, it is safe and highly suited for food-contact machinery components and various medical applications like prostheses.
