Product Description

Product Detail

UHMWPE (Ultrahigh molecular weight polyethylene) is a thermoplastic engineering material with high molecular weight and excellent performance.

On the whole, it almost focused on the advantages of all kinds of plastic, which has incomparable wear resistance, impact resistance, self-lubrication, corrosion resistance, low temperature resistance, sanitary nontaxicity, extremely high smoothness and low water absorption.

In fact, there is no single polymer material has so many excellent properties like UHMWPE material. So, we provide UHMWPE liner in various shapes and sizes, which are available in different color such as Black, Grey, Natural, etc.

However, we offer in UHMWPE liner customized designs with distinct specifications in colors and dimensions.

UHMWPE lining sheets assist to reduce typical flow problems of bulk solids in bins, hoppers, chutes, truck beds and other applications.

However, every application, brings with it unique challenges and places special demands on the plastic lining materials.

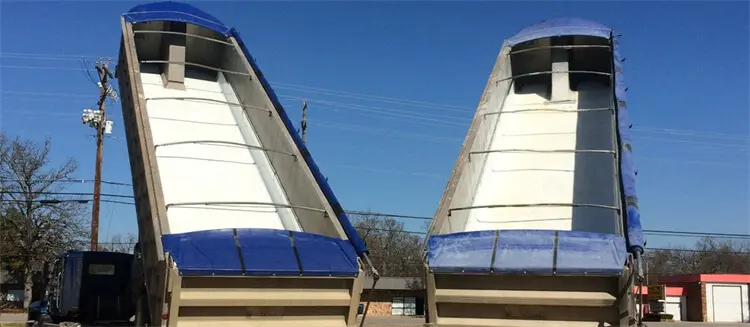

PE liner
Product Parameter
Properties Test Method Unit Value
Density DIN EN ISO 1183-1 g / cm3 0.93
Hardness DIN EN ISO 868 Shore D 63
Molecular Weight - g/mol 1.5 - 9 million
Yield stress DIN EN ISO 527 MPa 20
Elongation at Break DIN EN ISO 527 % >250
Melting temperature ISO 11357-3 °C 135
Notched impact strength ISO11542-2 Kj/m2 ≥120
Vicat Softening Point ISO306 °C 80
Water absorption ASTM D570 / Nil
Product Feature
  • 1. Excellent abrasion resistance Marine fender pad of UHMWPE material outwear hardened steel. Cuts hour-glass wear on pilings from vertically moving "camels".
  • 2. No moisture absorption Marine fender pad of UHMWPE material no swelling or deterioration from water permeation.
  • 3. Chemical and Corrosion Resistant Marine fender pad of UHMWPE material withstands salt water, fuel and chemical spills. Chemically Inert does not leach chemicals into waterways, disturbing fragile ecosystems.
  • 4. Performs in Weather Extremes Sub-zero conditions do not degrade performance. Marine fender pad of UHMWPE material retains key physical properties to -260 centigrade. UHMWPE material is UV-resistant, which increases wear life in seaport exposures.
UHMWPE fender pads feature:
  • 1. Highest abrasion resistance Highest abrasion resistance of any polymer, 6 times more wear resistance than steel.
  • 2. Anti-weather & anti-aging Excellent resistance to weather and aging for extended outdoor service life.
  • 3. Self-lubricating Self-lubricating surface properties and very low coefficient of friction.
  • 4. Excellent chemical & corrosion resistance Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity.
  • 5. Superior impact resistance & absorption Superior impact resistant, noise-absorption and vibration-absorption; Low water absorption <0.01% water absorption and not affected by temperature.
  • 6. Wide temperature range Maintains functional stability and performance across temperatures from -269ºC to +85ºC.
Product Application
  • Augers
  • Bearings and bushings
  • Chain guides, sprockets and tensioners
  • Chute and hopper liners
  • Deboning tables
  • Flights and gears
  • Guide rails and rollers
  • Mixer bushings and paddles
  • Scraper and plow blades

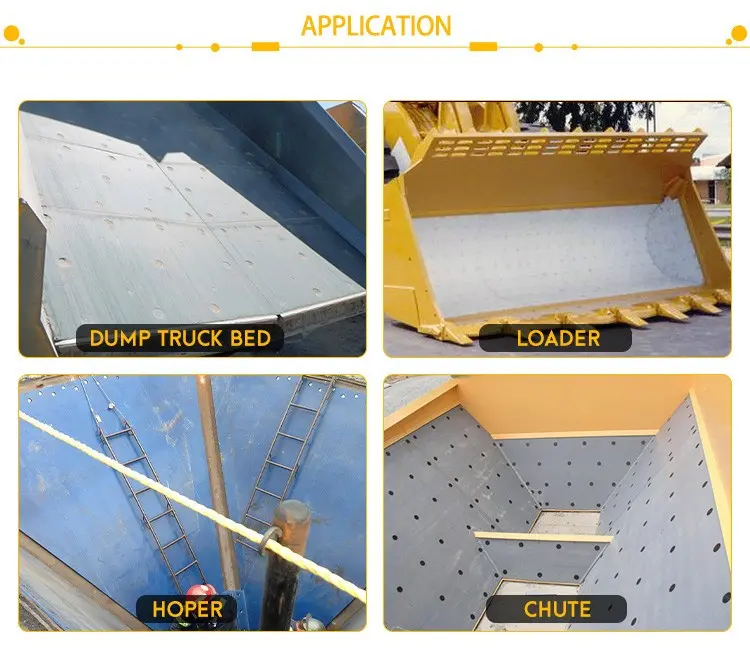

PE 1000 Sheet
Product Certificate
Certificate
Product Packing
pp sheet
pp sheet
pp sheet
pp sheet
FAQ
Are you a trading company or a manufacturer?
We are a manufacturer with our own professional manufacturing facility.
How long is your delivery time?
It depends on the quantity and material of your order. We can also handle rush jobs for urgent orders.
Do you provide samples? Is it free or extra?
We can provide free samples, but you may need to pay for the express cost.
What are your terms of payment?
We accept TT, LC, Western Union, PayPal, Trade assurance, Cash, etc.
Do I need an installation team?
No, the installation is very easy. You just need to connect the panels together according to our installation video and drawing.
Can you provide customized service?
Yes, we can customize the size and shape of the product according to your drawing. We can also engrave your logo on the product.
